B. ARAPU, "The Telephotographic Apparatus of Georges Rignoux - Experiments in Sending Visible Forms by Electricity",
Scientific American Supplement, 22 May 1915 p.351

Détails de la page de couverture

​

The Telephotographic Apparatus of Rignoux and Reproductions Showing How the Letters of a Message Appear in the Receiver







​

​

​

​

​

​





Transmitting stations

a. magnetic relays
b. bank of 64 selenium cells















​

​

​

​

​

​

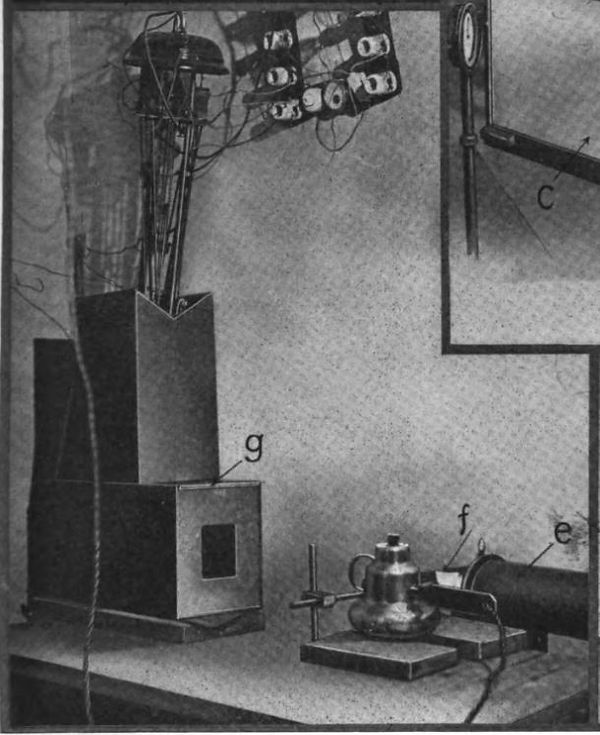

The receiving apparatus :

c. : translucent screen on which the images from the revolving mirror d are received

















​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

Receiving station

e. : solenoïd
f. : nicol prism
g. : arc light





​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​



The letter U in the Rignoux receiving mirror


​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

​

Tle letter L in the Rignoux receiving mirror
